http://wiki.fon.com/wiki/Firmware_Update_Instructions

• hw: http://www.webalice.it/fede.tft/fonera/fonera_serial.html
• sw: http://karmetasploit.com/archives/10
• http://www.dd-wrt.com/wiki/index.php/LaFonera_Hardware_Serial-Cable-Port

http://www.digininja.org/jasager/installation.php http://www.digininja.org/jasager/download.php

• machine 192.168.1.1
• Fon 192.168.1.254

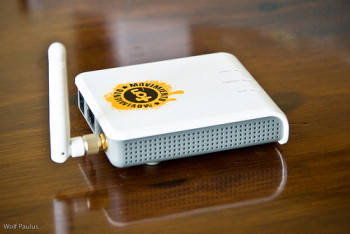

• CPU: Atheros AR531X_COBRA – MIPS 4KEc V6.4 – 183.50 MHz
• RAM: Hynix hy57v281620etp-h – 16 MB
• Flash: ST(84) H – 25P64V6P – MYS 636 – 8 MB
• Ethernet: (1x) Altima AC101 (10/100 Mbit/s) [Auto-MDI(X)]
• Wireless: IEEE 802.11b / 802.11g (up to 54 Mbps)
• Serial Port exposed on PCB J2
• Antenna Connector: RP-SMA Connector (Reverse SMA)
• Antenna Omni-Directional detachable antenna (2dBi)
• Powersupply Input: 100-240V ~ 50-60 Hz 0.3A. Output: 5V DC, 2.0A Output
• Power Consumption: 4 Watt

http://wavetenna.blogspot.com/2008/02/fonera-702-r3-hack.html also http://www.metacafe.com/watch/1116957/fonera_7_0_2_r3_hack_initial_hack_enable_ssh/

• no internet connectivity
• pres reset button at the bottom of the Fon for 40s (until only 1 light is on)
• wait 3-5 minutes until all lights go on
• config your pc/ntb:
  • ip: 169.254.255.2
  • mask: 255.255.0.0
  • gw: 169.254.255.1
  • dns: 169.254.255.1
• http://169.254.255.1 (7.0.1 r2 aka 0.7.1 r2)
• in Fon webiface in “Internet connection” reconfigure to get real Internet connection, with dns: 88.198.165.155 (applies Kolofinum hack for 7.0.1 r2)
• power off, power on
• 5-10min later ssh 169.254.255.1 (root/admin)
• upload new fw

• http://stefans.datenbruch.de/lafonera/
• http://web.archive.org/web/20081007064711/http://k0k0.k1k2.de/ssh/open-ssh-access-to-fonera_en.htm
