First of all :

THIS PROJECT DOES NOT SUPPORT ILLEGAL OR MISUSAGE OF THIS TOOL FOR ILLEGAL PURPOSES. PLEASE CONSIDER COPIRIGHT LAWS AND USE THIS TOOL ONLY FOR TESTING YOUR OR HOMEBREW APPLICATIONS

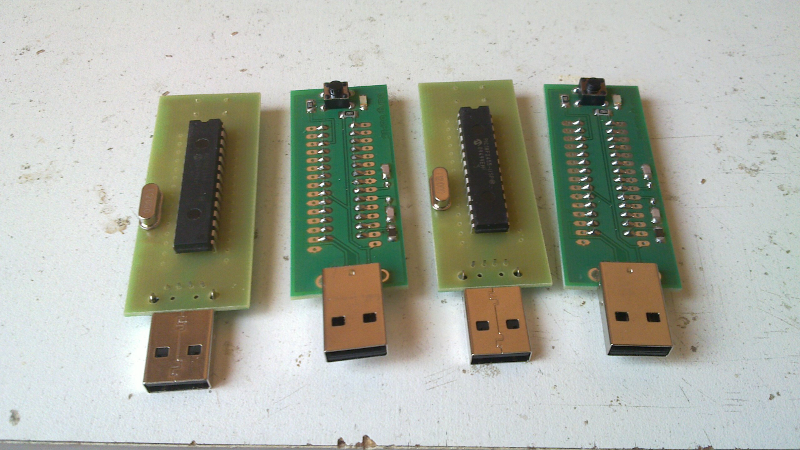

Cheap and easy implementation of opensource PS3 jailbreak tool ,based on PIC 18F2550 with preloaded USB bootloader can be used also for other PIC based hacks and tools .

PsgrooPIC Homepage , Sources and Download

PsGroove Info Page

WFF Building a PIC18F USB device

1. To learn PCB design
2. To create not only PS3 Hacking tool but also small and smart PIC development toy
3. Learn Microchip C18 development issues
4. Learn USB communication [USB-HID]

1. Make electronics design [DONE]
2. Make PCB design [DONE]
3. Order PCB's from local PCB manufacturing company [DONE]
4. Try to flash Microchip's USB bootloader and test it [DONE]
5. Try PSGrooPIC functionality [DONE]
6. Try and play with USB-HID [in progress]
7. Prepare interface software (C++, C# , python , java … any else ?) [planned]
8. Prepare functional libraries (character lcd , graphical lcd , buttons , buzzers ,etc …) [planned]

MCU - Info + Datasheet's

USB Bootloader

USB Bootloader from Microchip

Another USB bootloader :)

Opensource IDE with C compiler for 18F devices

Another Opensource IDE with C compiler for 18F devices

VUSB Analyzer - not testet yet
